Product Description

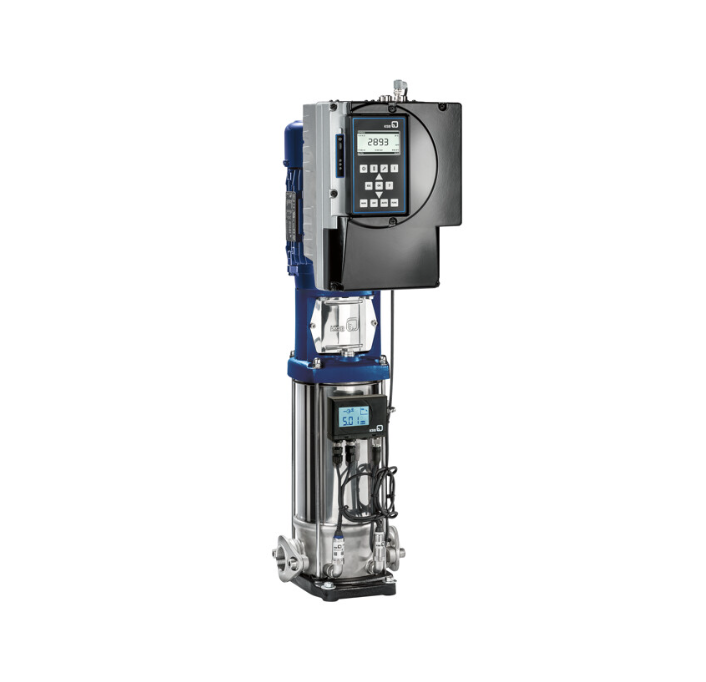

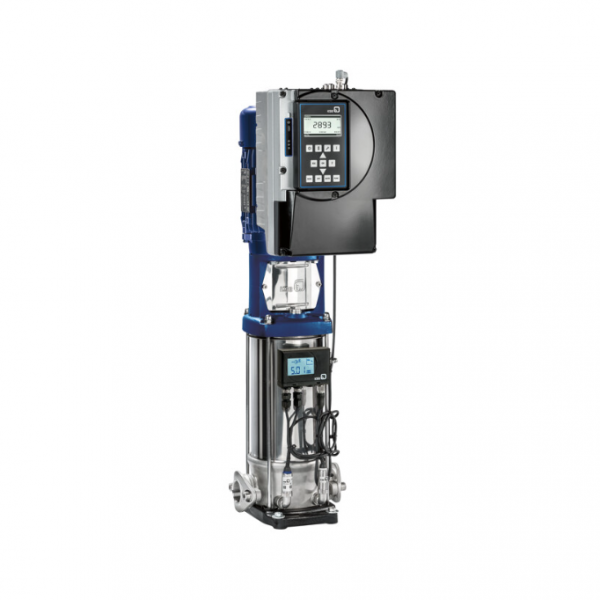

Multistage vertical high-pressure centrifugal pump in ring-section design with suction and discharge nozzles of identical nominal diameters arranged opposite to each other (in-line design), close-coupled. With KSB SuPremE, a magnetless synchronous reluctance motor (exception: motor sizes 0.55 kW / 0.75 kW with 1500 rpm are designed with permanent magnets) of efficiency class IE4/IE5 to IEC TS 60034-30-2:2016, for operation on a KSB PumpDrive 2 or KSB PumpDrive 2 Eco variable speed system without rotor position sensors. Motor mounting points in accordance with EN 50347, envelope dimensions in accordance with DIN V 42673 (07-2011). ATEX-compliant version available.
Main Applications
-
Spray irrigation systems
-
General irrigation systems
-
Washing plants
-
Fire-fighting systems
Technical Data
- Max. flow rate – 192 m³/h
- Max. head – 415 m
- Max. allowed working pressure – 40 bar
- Max. allowed fluid temperature – 140 °C
Benefits
-
Reliable: product-lubricated plain bearings made of tungsten carbide, cast pump foot, torsion-resistant pump shroud and confined O-rings
-
Long service life: corrosion-resistant hydraulic components made of stainless steel
-
Easy to service: can be fitted with any standardised mechanical seal (to EN 12756)
-
Flexible: various materials and connection options, extended temperature range and pressure range
