Product Description

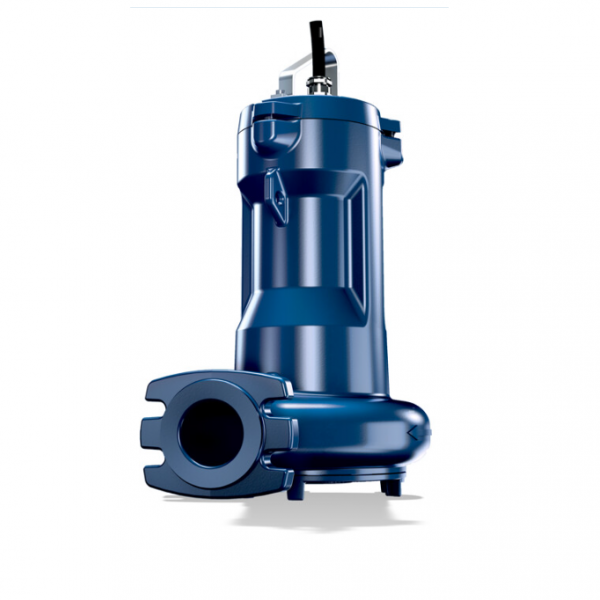

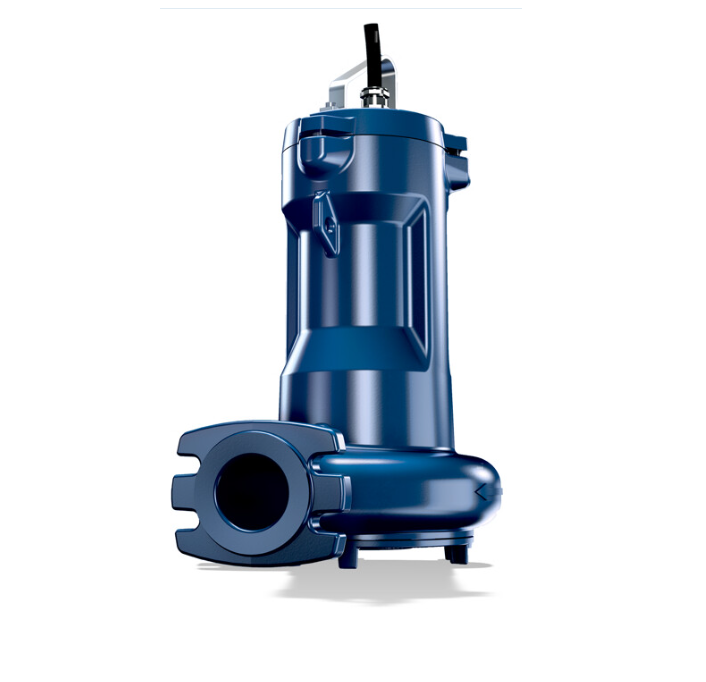

Vertical single-stage submersible motor pump for wet installation, with vortex impeller (F-max) or open dual-vane impeller (D-max), stationary or transportable version. Single-stage, single-entry close-coupled pump sets which are not self-priming. ATEX-compliant version available.
Main Applications
-
Waste water transport
-
Waste water management
-
Drainage systems
-
Waste water treatment plants
Technical Data
- Max. flow rate – 330 m³/h
- Max. head – 42 m
- Max. allowed working pressure – 4 bar
- Max. allowed fluid temperature – 40 °C
Benefits
-
High efficiency thanks to enhanced power density (Wh/m3), overall efficiency of up to 69 %, lower total cost of ownership
-
Non-clogging (no clogging by wet wipes) with patented deflection technology and D-max impeller
-
Long service life with high operating reliability and durable bearings (100,000 operating hours)
-
Environmentally friendly with non-toxic, food-approved oil fill for lubricating the mechanical seal (liquid reservoir)
-
Flexible thanks to easy substitution of competitor pumps with a large range of adapter claws and substitution pump app
