Product Description

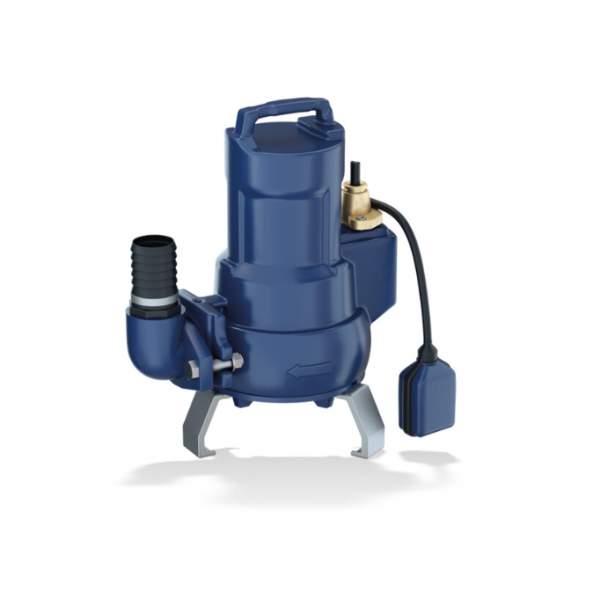

Vertical single-stage submersible motor pump (grey cast iron) for waste water in close-coupled design for wet installation, stationary or transportable version.
Main Applications
-
Pumping station
-
Domestic waste water
-
Waste water transport
-
Draining of pits, shafts, etc.
Technical Data
- Max. flow rate – 130 m³/h
- Max. head – 37 m
- Max. allowed working pressure – 16 bar
- Max. allowed fluid temperature – 40 °C
Benefits
- High operating reliability, even under tough operating conditions due to generously sized motor and thermal overload protection
- Long service life with shaft made of corrosion-resistant stainless steel and one or two bi-directional mechanical seals
- Trouble-free operation: clogging by coarse particles is prevented by large free passage (vortex impeller) or by cutter with high mechanical resistance for grey water
- Stationary pump sets easy to install and remove with automatic, bolt-free connection; leakage prevented by elastic sealing elements
- Ease of service with wetted bolts made of stainless steel which are easy to undo even after years of operation
