Product Description

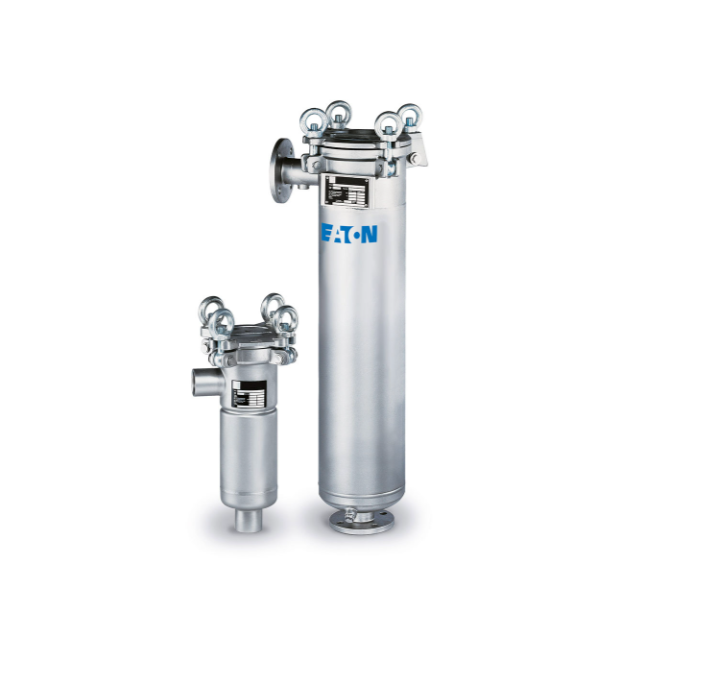

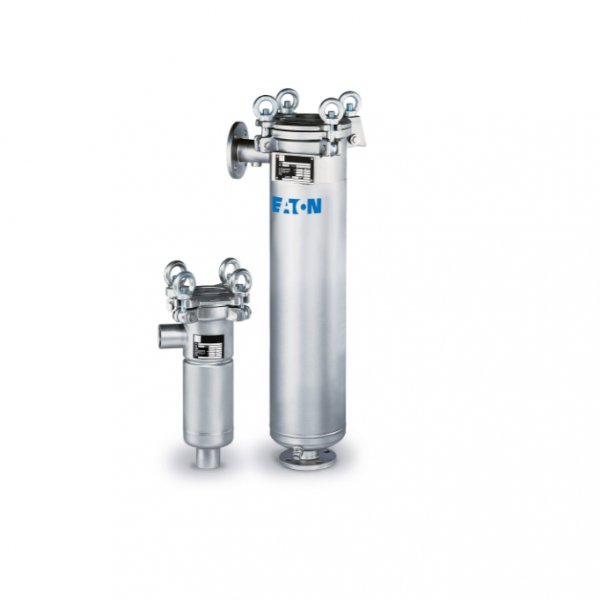

A SIDELINE bag filter housing vessel from Eaton is a full-featured investment-cast filter vessel with an ASME Code Stamp. A bead, not sand, blasted finish that makes cleaning complete and a cover that can be easily adapted to different opening directions are among SIDELINE’s many value added features.
Units come standard with filter bag size 01 and 02 stainless steel restrainer baskets.
For smaller flow rates also available in the MINILINE version in sizes 03 and 04.
Core features
- Side inlet piping connection
- Sizes for #01 single or #02 double-length filter bags
- Unique two-weld design
- Buna N seals standard
- Stainless steel basket
- 2″ or 3″ RF 150-lb ANSI flanged connections
- Maximum operating pressure of 150 psi
- Maximum operating temperature of 400°F with Viton seals
- Evacuation cover with swing bolts
- Adjustable mounting legs
- ASME code stamp
- Type 304 or 316 stainless steel construction
Key SIDELINE Applications:
- Automotive
- Food and Beverage
- Chemical Processing
- Paints, Inks, Resins and Coatings
- Electronics
- Petrochemicals
- Municipal Water Treatment
- Industrial Water Treatment
- Pulp and Paper
- Pharmaceutical
- Lubricants, Metalworking Fluids
- Solvents
Available Options
- Steam jacket
- Mounting brackets
- Electro polishing
