Product Description

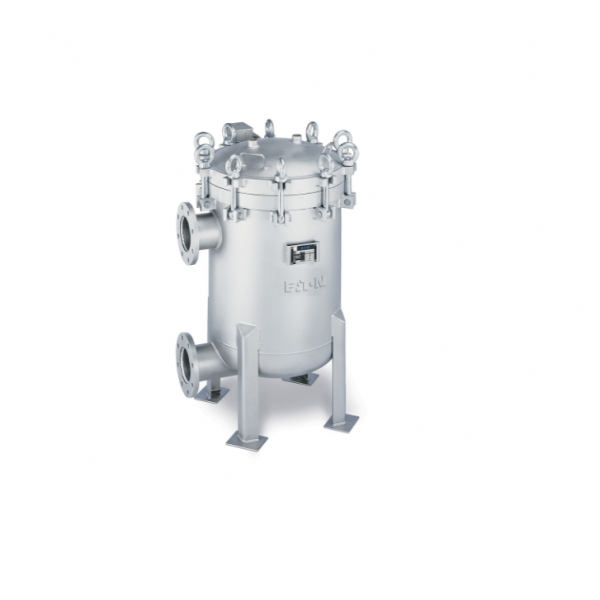

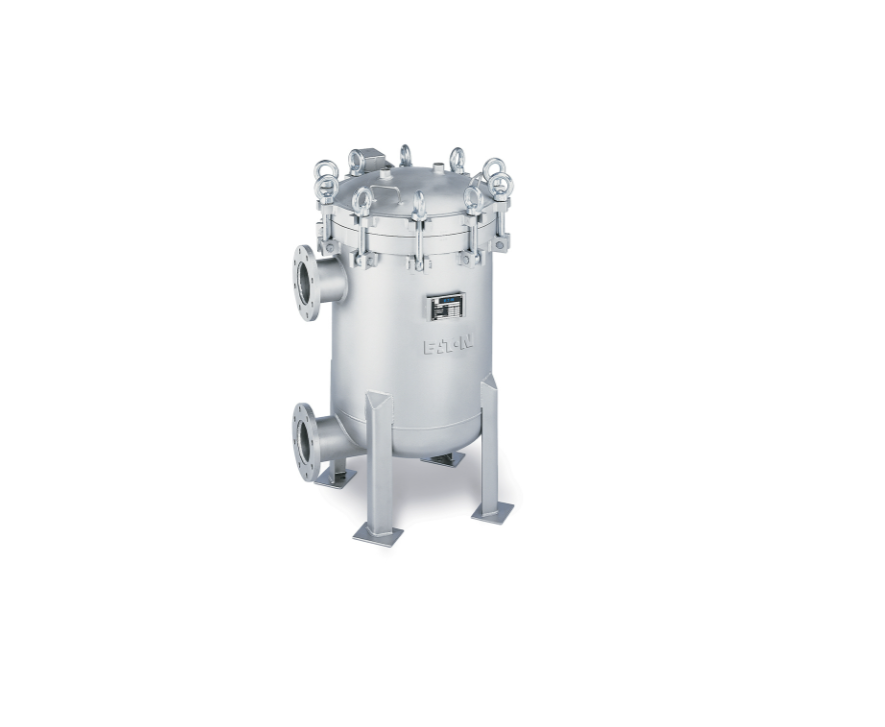

Eaton’s MAXILINE MBF HE multi-bag filter housing is user-friendly, cost-effective and designed for high volume, multiple applications and processes. This multi-bag filter housing is equipped with proven and easy-to-use rugged eye-bolt cover closure.
Core features
- Available in Type 304 stainless steel, Type 316 stainless steel or carbon steel with standard Buna N o-rings, Viton o-rings are an available as an option.
- A counter balanced spring assisted cover lifting mechanism balances the cover perfectly giving it a “weightless” feel. Opening and closing the cover is “finger tip” easy.
- Side inlet and bottom outlet provides easy and complete drainage. A tangential outlet option is available to reduce the height of the housing making filter bag change-out easier.
- Unique 3-point hold down ensures a high-quality seal between each filter bag and the housing body. A supplied special tool ensures, simple effective operation.
- Housing volume is optimized to minimize product loss.
- Available in four sizes for 3, 4, 6, or 8 standard size 02 double length filter bags.
Key MAXILINE MBF HE Applications:
- Automotive
- Food and Beverage
- Chemical Processing
- Paints, Inks, Resins and Coatings
- Electronics
- Petrochemicals
- Municipal Water Treatment
- Industrial Water Treatment
- Pulp and Paper
- Pharmaceutical
- Lubricants, Metalworking Fluids
- Solvents
