Product Description

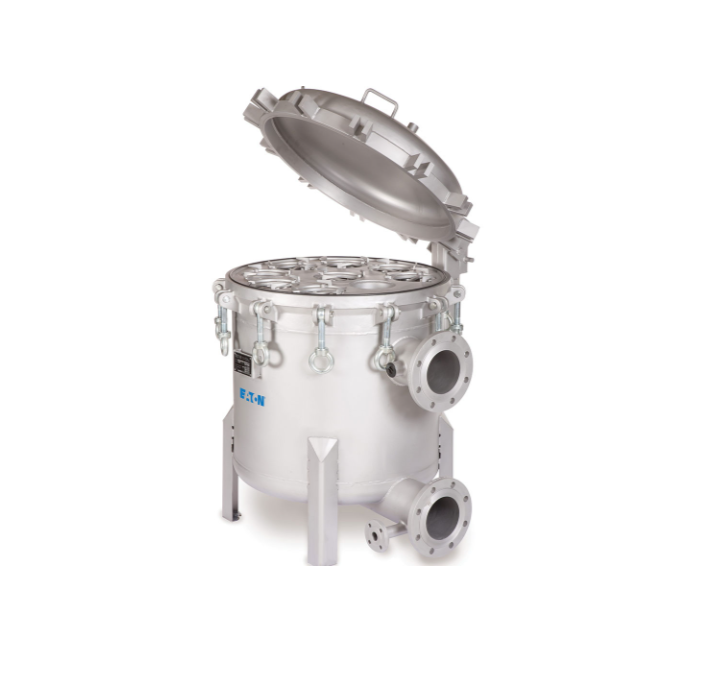

The PROLINE 150 HE Series features a low profile design with side inlet and tangential outlet that provides easy and full drainage and reduces housing height to make filter bag change-outs easier. The housing system is offered in 3, 4, 6 and 8 bag configurations and comes standard with filter bag size 02 stainless steel restrainer baskets.
Core features
- 150 PSI – For a wide variety of filtration applications.
- 304 stainless steel for high corrosion resistance.
- Unique 3-point hold down ensures a high-quality seal between each filter bag and housing body.
- A spring assisted lifting mechanism balances for quick and easy opening
- Positive O-ring sealing offers easy and safe operation.
- Low profile design with side inlet and tangential outlet provides easy and full drainage and reduces housing height to make filter bag change-outs easier
Key PROLINE applications:
- Solvents, Paints
- Edible Oils
- Petrochemicals
- Water
- Waste Water
- Chemicals
- Metal
- Automotive
- Electronics
- Food and Beverage
Specifications
- Use with standard #2 size filter bags.
- 304 stainless steel construction with bead blast external finish.
- 150# RF flanged inlet and outlet ports for side in/tangential out configuration.
- Units come standard with a stainless steel support basket.
- Heavy-duty stainless steel mounting legs are included.
- Buna-N O-rings for the cover are standard. Viton or EPDM are optional.
- Available as inline configuration or loop piping configuration (shown).
