AlfaVap In-Line is a multiple effect plate evaporator fit into one frame. It is customized as per application needs, compact, and reduces footprint. Just plug and play unit, saves installation time at the site, and is maintenance-friendly. AlfaVap In-Line is being used for sweeteners in the starch industry, coconut water, and clear juices Tube-in-tube heat exchanger Module front 640x360 Related services Extending the performance of your equipment Our dedicated global service network supports you with parts and expertise, wherever you are, whenever you need it. By ensuring greater uptime, availability and optimization, we help bring you peace of mind and maximize your return on investment. We can work with you to integrate our services into a Performance Agreement for predictable and worry-free operations. Learn more about our service offer How can we help you? Please contact us with any queries or questions. The new Alfa Laval Tube-in-tube heat exchanger is specifically designed for sludge which contains fibres and particles, making it ideal for heating and cooling of most wastewater sludge. The equipment consists of a single tube mounted inside an outer shell tube, so that the product medium flows counter-current through the inner tube, with the service medium around it. The unit features a fully welded construction with a bellow-on-shell tube to absorb thermal expansion. The Alfa Laval Tube-in-tube heat exchanger modules are typically connected in series and mounted on a frame. The shell tube is always smooth while the product tube is either corrugated or smooth depending on the application. The installation is maintenance free, thus eliminating any need for spare parts. The layout of tube-in-tube heat exchangers can be customised to fit the available installation foot print or other customer requests. How it works The product medium inside the tube flows in counter current to the service medium. The product tube is corrugated, or it can be smooth. The shell tube is always smooth. The range of Alfa Laval heat exchangers makes it possible to choose the optimum heat exchanger for each duty

The Alfa Laval Olmi range of customized heat exchangers is designed and built for the toughest applications in chemical processing industries, oil & gas production and power stations. These units maximize plant sustainability through low service requirements and exceptional reliability, resulting in competitive total cost of ownership and trouble-free operation. And with our extensive offer of services, we can help you optimize operation throughout the entire product lifetime. Olmi Reforming Process Gas Boiler 640x360 Solid performance Fully customized to your requirements Maximum uptime under the toughest operating conditions High energy efficiency Low service requirements Extensive service network With an Alfa Laval Olmi process heat exchanger you get a tailor-made solution, optimized to your specific conditions. Our process heat exchangers are often used in production-critical positions under extreme conditions, and have a reputation for solid operating reliability and high performance.

Scraped surface heat exchangers are essential for the continuous thermal processing of viscous, sticky, crystallizing, or heat-sensitive products. Designed for high efficiency and gentle handling, they ensure consistent product quality across demanding applications in the food, pharmaceutical, and personal care industries, delivering hygienic, reliable, and cost-effective performance. Mechanical pump or turbine with exposed rotor blades and liquid inside cylindrical body, industrial fluid processing unit Efficient thermal processing with Alfa Laval Contherm® More options: As the only range with both single and double-wall scraped-surface heat exchangers, there’s a Contherm® for nearly any application. More quality: Contherm® scraped surface heat exchangers are engineered to prevent fouling while preserving key flavour and nutritive components. More savings: With innovations for improved energy efficiency and minimal maintenance, Contherm® can ensure the lowest possible cost of ownership. More reliability: Every Contherm® is built with proven components, and backed by a global network with over 80 years’ experience in heat transfer. Contherm® scraped surface heat exchangers are robust, high-performance solutions for demanding heating and cooling duties across sectors such as food, pharmaceuticals, chemicals, and personal care. Unlike traditional heat exchangers, these systems are engineered to handle viscous, crystallizing, or particulate-rich materials, making them ideal for challenging applications. Alfa Laval’s rotating scraping technology reduces fouling during operation, which maintains high thermal efficiency while ensuring gentle product handling. This is especially important for shear-sensitive or sticky formulations, where maintaining product integrity is critical. Compared to a static scraped heat exchanger, Contherm® provides a larger flow area and reduced pressure drop, maximizing uptime and process reliability.

Wet Surface Air Coolers (WSAC®) are custom built evaporative air-coolers, closed-loop cooling and condensing systems that combine high performance, low operating costs, compact size and reliable operation. Renowned for their robust design and high efficiency, Alfa Laval evaporative and water air coolers are used in many demanding industries. Their low water consumption and high cooling capacity have made them a choice in applications where low temperatures are required for process improvements. 阿法拉伐 Niagara 湿式表面空气冷却器 Benefits from evaporative air-coolers Lowest possible process fluid outlet temperature thanks to evaporative cooling Minimal water consumption – cooling water can be re-circulated and the makeup water can be of low quality Low energy consumption Compact size and lowest lifecycle cost Well-proven technology and long service life Alfa Laval water air-cooler systems are engineered-to-order, closed-loop cooling and condensing systems. Thanks to Alfa Laval’s WetSurface technology, these units provide maximum cooling in a compact unit and use a minimum of water and electric power. The robust and simple design brings stable thermal performance and low maintenance requirements. An Alfa Laval water air-cooler is a closed loop system, meaning there is no risk of contaminants entering the process stream. Our evaporative and water air-cooler systems can be fully customized to your requirements, for example they can be designed to withstand corrosive media, cool several process streams in parallel or with the ability to run in both dry-cooling and wet-cooling mode. Unique features of evaporative air-coolers

The Alfa Laval portfolio of welded plate-and-shell heat exchangers offer ultimate robustness for challenging high pressure process duties. They are designed for high temperatures and high pressures, primarily for clean process fluids. The units deliver efficient heat transfer with a small footprint, which makes them ideal where space is restricted.

Packinox plate-and-frame heat exchangers are the perfect choice for heat transfer duties in processes with large flows, high temperatures and high pressures. Find out more about the advantages of plate-and-frame heat exchangers below. packinox plate-and-frame heat exchanger Outstanding thermal efficiency Lower CAPEX – A single Packinox can replace several large shell-and-tube heat exchangers Lower OPEX – The exceptional heat recovery brings substantial energy savings Low maintenance costs thanks to minimal fouling Low pressure drop Reliable, proven technology A single Packinox outperforms systems consisting of multiple large shell-and-tubes, both in terms of heat recovery and investment costs. And thanks to the innovative design of Packinox+, the latest addition to the Packinox range, you can now optimize for highly asymmetric flows, opening up for a wide range of demanding dutie

The Alfa Laval Compabloc range provides compact, efficient and reliable heat transfer for a wide range of process duties. Full and easy cleanability on both circuits make them the most service-friendly welded heat exchangers on the market. It’s easy to see why together, Compabloc, Compabloc+ and Compabloc Free Flow have become the undisputed champions of heat exchange in some of the most demanding applications. Alfa Laval Compabloc series fully welded plate heat exchanger The Alfa Laval Compabloc range Reliable, efficient technology with a proven track record in a wide range of process duties Advanced, specialized designs for higher pressure duties as well as duties with strict hygiene requirements Full mechanical cleanability with easy removal of fouling and a design that protects against corrosion Compact design creates new possibilities to resolve bottlenecks and boost productivity Access to a global network of experienced service professionals who can assist you onsite With a complete family of technologies, the Compabloc range can support applications with extremely dirty and aggressive media as well as those with the highest hygienic requirements. Today, Compabloc heat exchangers are found in all types of process duties all over the world, where they provide as much as 5 times the thermal efficiency of traditional shell-and-tube solutions. Where there are higher pressure demands, the Compabloc+ offers the same level of efficiency with safe operation up to 60 bar. And for pharmaceutical applications, the Compabloc Free Flow has a special design tailored to the requirements of modern API production. Not sure which Compabloc is right for you?

Alfa Laval spiral heat exchangers are designed to handle the toughest heat transfer challenges. Whether it’s frequent fouling from dirty media, or limitations from pressure drop and floor space, they are the ultimate problem solver for liquid-to-liquid and two-phase duties. The robust, efficient and compact designs keep both installation and maintenance costs extremely low, and they have a proven reputation for almost never fouling up. Welded spiral heat exchanger Improving sustainability with Alfa Laval’s spiral heat exchangers Minimal fouling, or clogging, in duties involving very dirty, highly viscous or particulate media, ensures uptime Easy-to-open design makes cleaning quick and simple, ensuring low maintenance costs Reduced pipework and steel structures means lower installation costs Increased energy savings and reduced emissions thanks to thermal efficiencies 2-3 times higher than comparable shell-and tube exchangers Each unit is fully customized, offering the best thermal fit for the specific duty Alfa Laval is the only supplier on the market with more than a half-century of experience with spiral technology. Today our spiral heat exchangers can be found in plants around the world, solving tough problems in industries that include: petrochemical, refinery, steel making, pulp and paper, mineral processing (metals, ore), wastewater treatment (municipal and industrial), pharmaceutical, vegetable oil refining and natural gas transportation.

Alfa Laval printed circuit heat exchangers (PCHEs) combine superior robustness and integrity with an exceptionally high heat transfer rate in a unit up to 85 % smaller and lighter than traditional shell and tube exchangers.

Alfa Laval doesn’t do average. Whether it is our multi-purpose Industrial range; the Semi-welded industrial range for refrigeration and exacting processes; the Hygienic range for food, beverage and pharma applications; or the Specialized range for condensation, evaporation and fibrous media – you buy into reduced cost of ownership and increased efficiency and safety. TS45 still 640x360 Gasketed plate heat exchangers for modern requirements Highest thermal efficiency and close temperature approach Compact units - space saving, easy to service and maintain Maximum uptime - less fouling, stress, wear and corrosion Flexible - easy to adapt to changed duty requirements Our Gasketed plate heat exchangers are optimizing heat transfer by large surfaces of corrugated plates drawing heat from one gas or liquid to the other. The high efficiency and an outstanding reliability in a compact design, offers an investment with the most attractive CTO over the product life time. Not to forget the energy saving capabilities and low environmental footprint.

Fusion-bonded plate heat exchangers are made of 100% stainless steel and provide efficient heat transfer with a small footprint. They are maintenance free and provide a long service lifetime. They are suited in applications which put high demand on cleanliness, applications where aggressive medias such as ammonia are used or where copper and nickel contamination is not accepted. Can handle very high temperatures or extremely high pressures. AlfaNova fusion bonded plate heat exchangers Alfa Laval Webshop Browse through our product catalog to locate the Alfa Laval product best suited to your application and the nearest partner.

From exceptionally high temperatures to media with extremely asymmetrical flow rates, Alfa Laval’s gas-to-liquid portfolio handles more than other plate heat exchangers. Built with a revolutionary asymmetric “dimple” plate design, our gas-to-liquid models provide efficient heat recovery and very low pressure drop in gas applications – all within a significantly smaller footprint than tubular technologies. AlfaNova-vignette-GTL Handle more with brazed gas-to-liquid technology The lightweight brazed construction offers much greater thermal efficiency and is typically 75% smaller than comparable shell-and-tubes Supports gas temperatures up to 750°C with no risk of thermal fatigue. For some applications, temperatures above 1400°C are possible. Very low pressure drop in asymmetric applications thanks to patented “dimple” plate design Fast global delivery thanks to Alfa Laval’s advanced production and logistics capabilities as well as a stock of standard gas-to-liquid models The unique design of our gas-to-liquid plate heat exchangers enables them to operate with much higher flow volumes on one side of the plate. They can therefore handle complicated gas media duties that are impossible for other plate heat exchangers, with very low pressure drop and the ability to resist thermal fatigue. This opens up possibilities for heat recovery in a wide range of industries, offering faster payback times as well as important environmental benefits. These advantages make our gas-to-liquid heat exchangers suitable for a number of challenging applications, such as air compression and combined heat and power

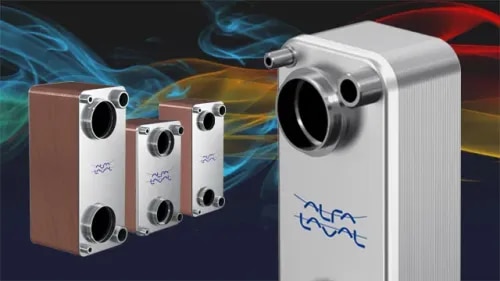

Alfa Laval copper-brazed plate heat exchangers are a compact, efficient and maintenance-free solution for heating, cooling, evaporation and condensing in numerous applications. Each unit is designed for duty optimization, with a range of unique features that ensure both superior thermal performance and maximum reliability. This enables the longest possible service life – even under conditions with extremely high design pressures. Alfa Laval Brazed plate heat exchanger Sustainable heat transfer Lightweight brazed construction offers much greater thermal efficiency than comparable shell-and-tubes with a footprint that’s 75% smaller The flexible DynaStatic distribution system in AC models enables higher efficiency in any evaporator duty and with any refrigerant Alfa Laval’s FlexFlow plate design provides channel asymmetry that can be tailored to fit the application We help you select the optimal pressing depth, plate pattern and configuration for your application An ideal solution for use with natural refrigerants, thanks to the compact footprint, optimized plate design and high design pressure With a robust and reliable construction, Alfa Laval’s comprehensive range of brazed plate technology offers a smart alternative to traditional heat exchangers. The application experience of Alfa Laval’s heating and cooling experts, combined with our continuous innovation in design and manufacturing techniques, ensures you always have access to the most competitive solution available. Example positions for our brazed heat exchangers include air conditioning and process chillers, commercial and industrial refrigeration, district heating and domestic hot water, heat pumps, gas boilers, energy storage, fuel cells, oil and fuel cooling, hydraulics, engine cooling, air compressors, and air driers.

Alfa Laval single seat valves (SSVs) are robust and reliable manual and pneumatic valves with a single plug design. Versatile and purpose-built, whether used for shutoff or changeover, these compact, modular ssv valves are ideal for use wherever high standards of hygiene are required across the dairy, food, beverage, brewery, home-personal care and many other industries. Single seat valves Modular purpose-built pneumatic single seat valve for processes requiring high standards of hygiene Exceptional valve hygiene and durability Enhanced product safety due to superior cleanability with smooth, no-crevice inner valve body Reduced wear part maintenance requirements due to defined seal compression that extends seal life Enhanced product safety due to the static seal leak detection Ensure hygiene and safety through full vacuum and added double lip seal protection against microbial contamination Maximize process safety and hygiene while minimizing the risk of contamination with Alfa Laval single seat valves. The single plug design ensures you meet your process requirements for tight shutoff, superior hygiene, and process and product safety. High reliability, low total cost of ownership, easy maintenance along with a wide range of flow rates and options to customize valves to specific process requirements make these extremely modular pneumatic valves the right choice for your hygienic processing needs. Fully configurable, these highly versatile ssv valves are easy to upgrade to meet changing process requirements. How does a single seat valve work? Standard Alfa Laval single seat valves are operated by means of compressed air from a remote location. The actuator smooths operation and protects process lines, while directing or diverting fluids. The ssv valve can be controlled using an Alfa Laval ThinkTop®.

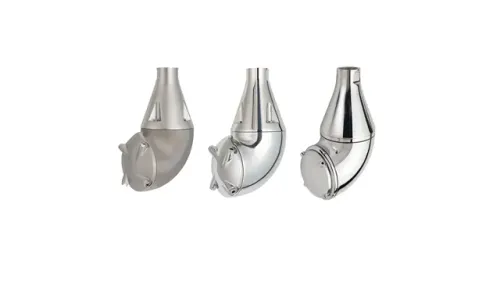

Alfa Laval shutter valves are hygienic three-way valves that divert the flow of products that are highly viscous, contain large particles, or have strict requirements on minimizing pressure loss. Compact, reliable and pressure-shock resistant, these valves can be operated in manual or automatic (pneumatic) mode. They are engineered for use across the food, chemical, pharmaceutical and other industries with high requirements for process and product hygiene. Koltek shutter valve Simple, straightforward inline three-way valves that easily divert fluids that are highly viscous, contain particles, or require minimal pressure loss Low flow restriction enables viscous liquids and liquid containing particles to flow easily through the valves Simple, straightforward and hygienic design easily integrates into various pipelines and systems Long-lasting, easy operation and maintenance due to few quality components and moving parts Easy, three-way routing of products when used with either manual handles or flexible, easy-to-select pneumatic actuators Compact, convenient, space-saving three-way valves Get more uptime using Alfa Laval 3 way valve to route your viscous liquids and liquids containing particles with minimal pressure losses – easily and conveniently. Engineered for ease of routing, high hygiene, low maintenance and safe operation, these shutter valves meet the demands of easy passage of fluids through the hygienic processing systems as well as easy, convenient and thorough Cleaning-in-Place. How does shutter valves work? Alfa Laval shutter valves, including three way valves, consist of rigid bodies with an internal cylindrical bore, a PTFE shutter and three ports for pipe connection. The two lids have guide rings for an internal shaft, which supports and positions the shutter, forming the core of the shutter valve mechanism. The shutter valves are operated either manually by means of stainless-steel handles or automatically by means of compressed air using pneumatic actuators. A spring system presses the shutter against the inside cylindrical surface of the valve body thereby ensuring complete tightness. Manually operated valves, such as Alfa Laval 3 way valve, can be fitted with indication units installed laterally. The valve actuator is available in two versions: a single-acting actuator or a double-acting actuator. The actuator consists of a system of cylinders and one or two main pistons interconnected with a toothed bar, which interacts with a gear wheel on the valve shaft. The pneumatic actuator of automated valves can be fitted with an Alfa Laval ThinkTop® V50 or V70 control unit, or an Alfa Laval indication unit installed laterally for remote indication of the valve position.

Alfa Laval’s range of hygienic sampling valves are valves used to draw liquid samples for evaluation in hygienic and aseptic processes without contaminating the sample or the sample source. Drawing representative samples that accurately reflect product characteristics enables product control and ensures product safety and quality. Ideal for use across the food, beverage, home-personal care, and biotech and pharmaceutical industries. Sampling valves Safe, highly accurate and reliable sampling with exceptional reproducibility and economy for volumes large and small Representative, contamination-free sampling with various options and accessories, including a double seat valve cleaning functionality Safe sampling using quality sampling accessories, including pressure relief valves, to assure proper usage and workplace safety Sterile sampling using quality sampling accessories, including a steam generator or hypodermic needle, to ensure extraction of microbial-free samples Flexible, easy-to-clean hygienic solutions for manual and/or pneumatic operation in a single sampling valve Versatile sampling methods, from hypodermic needle and plug to manual or pneumatic solutions with large ports and diaphragm Whether managing brewery yeast propagation or taking bulk, aseptic or microbiological samples, Alfa Laval sampling valves enable representative sampling in hygienic processes under sterile conditions. High accuracy, exceptional reproducibility and excellent cleanability ensure product quality, safety and integrity whilst eliminating the risk of cross-contamination. This results in increased productivity and yield. How does sampling valves work? Alfa Laval sampling valves, including sanitary sample valves and sampling valve stainless steel options, enable the operator to extract a representative portion of the process liquid for analysis to ensure quality control. These sanitary sampling valves are operated either by manual handle, by pneumatic actuator, or by a combination of manual handle and pneumatic actuator. For sterile sampling in pharmaceutical applications, a hypodermic needle is inserted into a rubber membrane plug to draw the process liquid for evaluation, making these pharmaceutical valves ideal for precise and hygienic sampling.

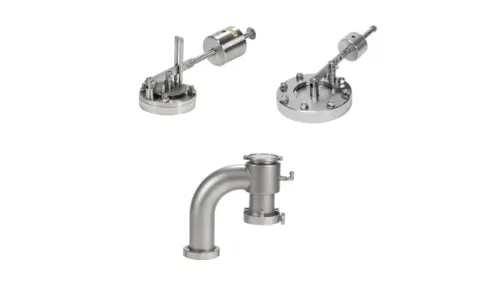

Alfa Laval safety valves maintain optimal operating conditions in hygienic applications due to overpressure, vacuum or unacceptable fluid levels. Minimizing the risk of explosion and implosion by relieving excess pressure or liquid levels from pipelines, vessels or equipment protects hygienic processing systems across the dairy, food and beverage, and brewery industries. This translates into higher levels of safety, less downtime and higher yields. Safety valve Secure your personnel and ensure more uptime by safeguarding your hygienic processing plant Prevent injury to personnel and damage to pipelines, process vessels and equipment from vacuum conditions or unacceptable pressure and fluid levels Improve worker safety and protect against workplace accident or injury Minimize risk of damage due to explosion, implosion or collapse Ensure accuracy and reliability with set points established at the factory according to customer specifications Secure economical, hygienic safety valves that are easy to install, operate and clean Let Alfa Laval safety valve protect your personnel and hygienic processing plant against damage due to excess pressure and vacuum conditions. Maintaining proper pressure in pipelines, tanks and systems safely below the design limit or within a pre-set pressure range takes know-how. Take advantage of Alfa Laval’s deep understanding of optimizing the reliability, performance and safety of both your processes and your workplace, despite the most challenging operating conditions. Protect your hygienic processing systems against the risk of damage due to: vacuum conditions caused by cold rinsing after hot cleaning caustic cleaning in CO2 atmosphere temperature fluctuations gas supply blockage during tank filling or emptying Get superior process safety, outstanding performance, and uncompromising cleanliness from Alfa Laval safety valve. How does a safety valve work? A safety valve is an essential device used to protect tanks and systems by relieving excess pressure or preventing vacuum conditions. Alfa Laval safety valve options include various types of safety valve designs, delivered with counterweights or spring sets and locked at pre-set opening pressures or vacuums to match customer requirements or tank design data. When the pressure or vacuum in the tank exceeds the pre-set opening value, the safety valve function is to relieve the excess pressure or allow atmospheric air in, ensuring safe operation. If you’re wondering what is safety valve, it’s a key component for maintaining safety and reliability in industrial applications.

Alfa Laval regulating valves provide precision control of flow rate or pressure in hygienic processing lines. They are ideal for use in metering, blending, weighing, and filling system applications across the dairy, food, beverage, home-personal care, biotech, and pharmaceutical industries. They also ensure safe and effective operation, easy maintenance, high product quality and enhanced productivity. Regulating valves Safeguard hygienic processing lines and productivity through accurate control of flow rate or pressure Optimizes processes by monitoring and adjusting flow rate or pressure – quickly, safely and effectively Hygienic and aseptic designs that comply with international standards for hygienic processes Easy installation, reliable operation, and low maintenance Broad operating range covering most process control requirements Let Alfa Laval regulating valves, including control valve and pressure regulating valve solutions, manage your hygienic and aseptic processing lines by maintaining precision control of flow rate or pressure. Designed to meet process demands for hygiene and safety, these regulating valve types monitor and adjust process parameters to boost performance whilst ensuring product quality, safety, and process integrity. Learn more about what is a regulator valve. How does regulating valves work? Regulating valves, including control valves and various regulating valve types such as pressure regulating valves, can be operated either manually on site or remotely in the following ways: Adjusting a regulator on the backside of the diaphragm to set the air pressure to a fixed pressure set point, which is a typical function of a pressure regulating valve. Using pneumatic actuators controlled by a positioner, a common setup for control valves. Utilizing a digital electropneumatic process controller, which enhances the capabilities in modern automated systems

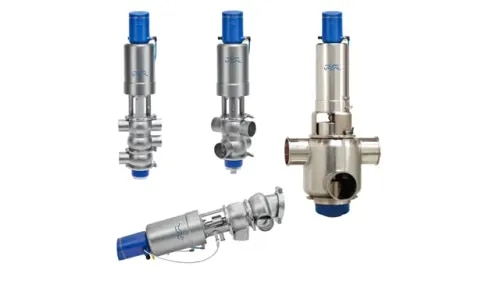

Modular and versatile, Alfa Laval mixproof valves are double block and bleed valves that handle the simultaneous flow of two different products or fluids through the same valve at critical pipeline junctions without the risk of cross-contamination. These Alfa Laval double seat valves provide exceptional operation, enhanced cleanability and high customizability to meet any hygienic process requirement. What you get is more uptime and the lowest total cost of ownership. Double Seat Valves Safe, efficient, hygienic handling of two fluids through the same valve without the risk of cross-contamination Maximum product safety, minimized risk of cross-contamination Enhanced product yield due to cost-effective, spillage-free operation Optimized plant efficiency and enhanced cleanability More uptime due to spillage-free design with double lip seal, built-in leakage detection and leakage chamber Fully configurable with a broad range of models and options to meet virtually any hygienic processing requirement Rely on Alfa Laval double seat valves for more uptime, greater flexibility, reliable operation, optimized maintenance, and easy cleanability. Select only for the features and functionality you require now; modularity lets you easily upgrade the valves to meet your changing needs. Plus enjoy an exceptional service life and reduced utility costs from each of Alfa Laval mixproof valve. Hygienic, high purity, aseptic and specialized versions are available for use across the dairy, food, beverage, home-personal care, and biotech and pharmaceutical industries. To better manage your mixproof valves, pair them with Alfa Laval sensing and control units. How do double seat valves work? The Alfa Laval double seat valve is a normally closed (NC) valve controlled from a remote location by means of compressed air. The double block and bleed valves has two independent plugs and seals to separate the flow of liquids and prevent cross-contamination; the space between the seals forms a leakage chamber at atmospheric pressure during every working condition. In the rare event that leakage may occur, product flows into the leakage chamber and exits through the bottom outlet for easy detection. When the valve is open, the leakage chamber is closed. The product then flows from one line to the other.

Alfa Laval double seal valves are cost-effective mixproof valves that safely handle the simultaneous flow of two different products or fluids through the same valve without the risk of cross-contamination. These standardized top-loaded pneumatic valves are ideal for hygienic applications that require additional safety, leakage detection and Cleaning-in-Place (CIP) across the dairy, food, beverage, home-personal care and many other industries. SMP sanitary valve Safe, reliable and economical double seal valves for safe separation of two different products in piping systems of hygienic and aseptic processes Safely isolates two process fluids or a process fluid and cleaning media without the risk of contamination Increases both operational and product safety due to self-draining design Produces higher quality products at lower costs using aseptic double seal valves to secure your process More uptime secured through fully maintainable actuator for precision valve control Low maintenance due to few, yet durable, moving parts and a top-loaded design that provides easy access for disassembly and service Maximize product safety and process reliability while minimizing costs and contaminant risks with Alfa Laval double seal valves. Handle both process and CIP fluids at the same time with ease. A great alternative to double-seat mixproof valves, these standardized, cost-effective double shutoff valves come in hygienic and aseptic models and are available in a variety of valve body configurations as shutoff valves. How does a double seal valve work? Alfa Laval double seal valves are controlled by means of compressed air from a remote location. The pneumatic valves are fitted with two pneumatic normally open (NO) valves – a leakage detection valve and a CIP valve. The valve has a double sealing system with a plug that has two seals; the space between these seals forms a leakage chamber under atmospheric pressure. The leakage detection valve discharges any product leakage to the leakage chamber. The leakage chamber may be cleaned by supplying a CIP system into the leakage detection valve. The double seal valves are insensitive to water hammer in the product line above the plug.

We offer a wide range of well-proven diaphragm valves. They are built on a modular design and can be configured to meet to any specific requirement. Alfa Laval diaphragm valves are ideal for use in sterile and ultra-hygienic processes and supplied with a comprehensive documentation package, Alfa Laval Q-doc, providing full transparency of sourcing, production and supply chains, and traceability of all changes in material, manufacturing procedures or spare parts.

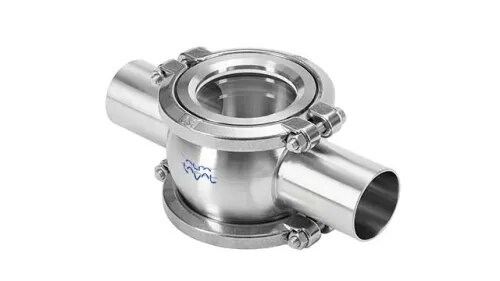

Alfa Laval check valve manages the flow of process liquids and gases through hygienic process systems. Easy to install, operate and maintain, these control valves safeguard process integrity and product quality while preventing potential damage to pipelines and equipment or system shutdown due to reverse fluid flow, pressure surges, water hammer and air entrainment. Fully automated and fast-acting, these hygienic valves provide safe, reliable and cost-effective fluid and gas management. Hygienic check valve Improve hygienic process efficiency with accurate flow control of process fluids and gases Protect process systems against potential damage by eliminating vacuum conditions to equalize pressure in the system Ensure plant safety and protect upstream equipment by preventing reverse flow and water hammer Safely pressurize or release air from process pipelines and systems, preventing equipment damage whilst safeguarding product integrity and yield Maintain stable CO2 pressure in process tanks or vessels by supplying gas and/or venting excess gas Ensure product quality through hygienic, self-cleaning designs that promote valve cleanability and minimize the risk of contamination and cavitation Protect your hygienic process systems with Alfa Laval control valve by managing the flow of process fluids and gases – safely, reliably and cost-effectively. Whether preventing contamination from backflow or providing pressure relief, Alfa Laval valves boost productivity and uptime whilst ensuring safe, reliable operation and low cost of ownership. These valves provide reliable and efficient regulation of fluid and gas flows. How does a check valve work? Alfa Laval check valves consist of many different valve types to fit specific applications and customer needs. The hygienic check valve is open when the pressure and flow of the process liquid or gas exceeds the pressure exerted on the valve plugs, free-moving polypropylene balls alternating between two seats, or stainless steel spring to fix it in position. To close the stainless steel check valve, higher pressure exerted on one side forces the valve mechanism to close, shutting off the flow of process liquid, air or gas.

Alfa Laval ball valves are versatile full-bore valves that enable full fluid flow with zero flow restriction and minimal pressure drop. This enables easy transfer of viscous liquids or liquids containing particles through hygienic processing lines. Fully pigable, these ball valves ensure easy, reliable product recovery and optimal plant performance. Ideal for use across a wide range of industries, including the food, beverage, chemical and pharmaceutical industries. Ball valves Safe, economical and durable full-bore hygienic ball valves Safe, hygienic design with FDA-compliant product-wetted elastomers and optional cavity cleaning or cavity fillers to prevent contamination and loss Optimizes product recovery and complete cleanability of the valve bore and pipeline due to the full-bore, piggable design Minimized pressure losses, especially when handling high-viscosity liquids Zero flow restriction makes handling liquids containing large particles easy Durable, water hammer-safe and versatile operation with choice of automated or manual control Ensure improved plant productivity and full process flow through your processing lines with Alfa Laval ball valves. Straightforward operation due to the full-bore design enables viscous liquids and liquids containing particles to flow freely through processing lines. Ball valves are available with either manual handles or maintenance-free pneumatic actuators. Actuators can be combined with intelligent valve control units with auto setup capabilities. Or let our experts select the optimal ball valves for your process requirements to secure ease of use, low pressure drops, minimized product losses, and higher yields. How does ball valves work? Ball valves are essential components in hygienic processing systems. The Alfa Laval hygienic ball valve, a leading product from a reputable ball valves manufacturer, features a precision-made ball with a full bore positioned inside the valve body between two flanges and two PTFE valve seats. This full bore valve design ensures that the bore diameter matches the pipeline diameter, allowing viscous liquids or liquids containing particles to flow unobstructed through the valve and processing line, with minimal pressure drop and minimal product loss. A 90° rotation of the valve stem opens or closes the valve, demonstrating what is a ball valve in practical operation. The valve can be operated either by a pneumatic actuator or a manual handle with lockable positions, making it suitable for use as a control ball valve in various applications. When the valve closes, the ball returns to its original position, tightly sealing the passage. Two inspection holes in the bonnet, connecting the valve body and actuator, make it easy to check that the stem seal is tight. Along with the durable ball, a specially selected PTFE-grade material secures a long valve lifetime. The use of spring-loaded, self-adjusting seal rings ensures reliable valve stem sealing. Valve screws enable assembly and disassembly for easy maintenance, making these ball valves a reliable choice for hygienic and industrial applications.

The Alfa Laval LKRK static spray ball is a tank cleaning machine for low-impact cleaning duties at low pressures. This spray ball releases cleaning media in a pre-defined pattern onto the tank interior, and a free-falling film flushes residues from the walls. It is a cost-effective choice for cleaning a broad range of products.

Get 100% cleaning coverage of duct and tank shadow areas with Alfa Laval wall mounted industrial tank cleaning equipment. Make hard-to-reach areas in ducts and on tank components, such as coils and underneath agitator blades, spotless. Pairing these devices with a top-mounted tank clean nozzle is possible if required. Installed flush with the tank or duct wall or bottom, they ensure an optimized spray pattern to increase product yield, improve end-product quality, and reduce operating costs. Industrial tank cleaning equipment Wall-mounted cleaning devices for 100% coverage of duct and tank shadow areas Faster, safer and contaminant-free changeovers with these highly effective CIP devices No risk of product contamination due to optimized, high impact spray pattern Highly resource-efficient, precision cleaning of tanks and ducts Easy to install, operate and clean Fast return on investment Raise productivity, safety and yield by eliminating the risk of contamination in your tanks and ducts with the Alfa Laval Wall Mounted industrial tank cleaning equipment. Choose the standard or UltraPure device that best suits your process, regardless of tank or vessel size, design or cleaning duty. How do the industrial tank cleaning equipment work? The options for Alfa Laval tank cleaning machines include an advanced control unit for process monitoring and feedback. Economical and resource-efficient, these wall-mounted tank cleaner machines safeguard process hygiene and product integrity while reducing the total cost of ownership, making them ideal for use across the dairy, food, beverage, home and personal care, pharmaceutical and other industries. Happy customers Safeguard cheese production with 100% cleaning coverage of tank shadow areas To increase cheese production by expanding its milk reception, a large Scandinavian dairy turned to the Beritech Group, an experienced tank and system builder. The objective was to guarantee complete cleaning coverage for two new 30-metre-high raw milk silos with bottom-mounted agitators.

The Alfa Laval rotary spray heads is a tank cleaning head is a free-rotating spinner that uses low volumes of cleaning media at low pressure for effective cleaning. Rotating spray heads improve tank cleaning efficiency, using less water, less energy and less cleaning media than static spray balls. This reduces the total cost of ownership and speeds the cleaning process, enabling more production uptime. Rotary spray heads Better, more sustainable tank cleaning than static spray balls Safe, hygienic design eliminates the risk of contamination 40% faster cleaning times compared to static spray balls, which translates into more uptime 40% savings in water and cleaning media consumption compared to static spray balls More sustainable tank cleaning machine with higher cleaning efficiency and lower total cost of ownership compared to static spray balls Easy to retrofit into tanks using static spray balls without having to adapt supply pressures or flow rates Let Alfa Laval rotary spray heads clean tanks more effectively than static spray balls. The CIP head is designed according to the most stringent hygienic standards, these provide Cleaning-in-Place (CIP) for vessels used in hygienic processing lines across the dairy, food, beverage, home-personal care, and biotech and pharmaceutical industries. Four versions are available to meet every tank size: micro, midget, magnum, and mega. To ensure complete tank coverage, all rotary spray heads are available in 360°, 270°, and 180° spray patterns and with various tank connections. Options include horizontal installation, ATEX version, and high-purity and aseptic versions backed by Alfa Laval Q-doc documentation package for full traceability of all product-wetted contact parts. Micro family Alfa Laval SaniMicro Midget family Alfa Laval SaniMidget Alfa Laval MultiMidget Alfa Laval SaniMidget SB Alfa Laval SaniMidget SB UltraPure Mega family Alfa Laval SaniMega SB Magnum family Alfa Laval SaniMagum Alfa Laval SaniMagnum SB Alfa Laval MultiMagnum How does Rotary spray heads work? The flow of the cleaning media causes the head of the tank cleaning head to spin. Fan-shaped jets lay out a swirling pattern of cleaning media throughout the tank, vessel or reactor. This generates the mechanical impact and cascading flow of cleaning media required to clean all internal surfaces and efficiently remove product residues from these surfaces. Happy Customers

Improve process efficiency, productivity and end-product quality with exceptional cleanability of your process tanks. Alfa Laval rotary jet heads tank cleaning machines prevent the risk of contamination across dairy, food, beverage, pharmaceutical and industrial applications. Choose between two series of tank cleaning machines: hygienic process models and industrial process models. Rotary jet heads Thoroughly clean tanks boost productivity and product quality Robust design Save time, water and cleaning media Enhance safe working conditions using automated cleaning with no man-entry required Safeguard process integrity and product quality with proven cleaning validation for hygienic processes Ensure process and product safety with 100% clean tanks. Alfa Laval rotary jet heads tank cleaning equipment deliver faster cleaning times and sustainable savings from reduced water and cleaning media consumption. Choose from a broad Alfa Laval rotary jet head portfolio for cleaning tank capacities from 200 litres up to 500,000 litres and beyond. Then customize these tank cleaning machines with options to meet your exact tank cleaning requirements. How does rotary jet heads work? The Alfa Laval rotary jet head tank cleaning equipment use an optimized high-impact jet pattern to provide the highest possible coverage to achieve the best possible cleaning results. The flow of the cleaning fluid makes the nozzles perform a geared rotation around the vertical and horizontal axes. In the first cycle, the nozzles lay out a coarse pattern on the tank surface. Subsequent cycles gradually increase coverage until, after eight cycles, extending over the entire tank interior surface for thorough cleaning. The high jet pressure, or force of impact, efficiently removes residue to provide the cleaning conditions required for production.

Alfa Laval ALP three-screw pumps are developed for lowest operating cost and highest reliability with specific focus on the marine industry. ALP is the obvious choise for handling of fuel and lubricating oils.

Choose an Alfa Laval rotary lobe pump for reliable performance and gentle pumping action of low, medium and high-viscosity media. Robust construction, modular design and flexible configuration enhance process flexibility and operational reliability. High-precision rotors and low-shear operation make these pumps ideal for handling sensitive process fluids in general, hygienic and high-purity applications across the dairy, food, beverage, personal care, biotechnology and pharmaceutical industries. Group of rotary lobe pumps Robust construction, precision tolerances, and gentle product handling process flexibility and cost-effective operation Reliable, high-performance, low-maintenance pumps for continuous processing with minimal to no unplanned production stops High-quality end-product due to gentle, low-shear pumping Compliance with hygienic standards for general, food-grade and pharmaceutical processing requirements Versatile, efficient pumping of low-, medium- and high-viscosity fluids Pharmaceutical grade version available with Alfa Laval Q-doc documentation package for full supply chain transparency and traceability Depend on the Alfa Laval rotary lobe pump for virtually pulsation-free handling of all types of process fluids, no matter the viscosity. Designed for easy maintenance and long service life, these pumps have a wide performance envelope to meet a broad range of process requirements while maximizing uptime and ensuring product quality and plant productivity. How does rotary lobe pumps work? Alfa Laval rotary lobe pumps, a leading choice among rotary pump types, consist of two intermeshed rotors affixed to a gear train. The gear train in the pump gearbox drives and accurately synchronizes the rotors, which is a key feature of positive displacement pumps. The rotors move in opposite directions, creating a partial vacuum that allows atmospheric pressure or other external pressures to force the fluid into the pump chamber. As the rotors disengage, a cavity forms and expands, filling with fluid. As the rotors engage, the cavity diminishes, displacing the fluid into the outlet port. Alfa Laval rotary lobe pump applications include transferring sensitive fluids and supporting hygienic processes in various industries.

AIfa Laval circumferential piston pumps deliver the perfect balance of high efficiency, superior hygienic performance, and easy maintenance. These positive displacement piston pumps handle low-viscosity liquids that require medium to high discharge pressures with ease. Capable of being cleaned in place and are perfect for use in hygienic applications across the dairy, food, beverage, confectionery, and home-personal care industries. For sterile pump operation, aseptic versions are available. Circumferential piston pumps Circumferential piston pumps for high volumetric efficiency, superior hygiene and low maintenance Hygienic design meets global standards, including EHEDG and 3-A, eliminating the risk of contamination Maximize uptime and minimize downtime with robust and reliable pump operation Easy-to-service liquid transfer pumps simplify maintenance, saving time and money High volumetric efficiency, even for low-viscosity fluids Get more out of your hygienic processing lines with Alfa Laval circumferential piston pumps. Robust and reliable, these medium- to high-pressure positive displacement piston pumps cover a broad range of flow rates and pressures. For high productivity and hygiene standards, low maintenance and total cost of ownership, these pumps assure process integrity and product quality. For sterile product transfer, aseptic versions with steam barriers on all atmospheric interfaces are available. How does a circumferential piston pump work? What is a piston pump and how does a piston pump work? This positive displacement piston pump features a pair of winged rotors or pistons that rotate within the pump casing, moving fluid around the circumference of the channel. As the rotors unmesh, they create a partial vacuum at the suction port, drawing fluid into the pump. The unique design of circumferential piston pumps ensures efficient fluid transfer as the rotors transport the liquid around the channel. When the rotors re-mesh, they generate pressure, displacing the fluid at the discharge port. The direction of flow in a circumferential piston pump is reversible, making it a versatile low NPSHr pump solution for various industries.

Alfa Laval centrifugal pumps raise product quality and process productivity for hygienic applications. Choose standard pumps for general product transfer duties or pumps for evaporation, high-pressure, self-priming, CIP return, and high-purity duties. Built to perform, these pumps ensure high efficiency, more uptime, gentle product handling, energy savings, easy maintenance, and low total cost of ownership. 阿法拉伐高效离心泵系列-Alfa Laval Centrifugal Pumps LKH pump range Robust, reliable hygienic centrifugal pump for gentle and efficient product transfer Low life-cycle costs due to energy-efficient operation, easy cleanability, simple maintenance and long service life Exceptional levels of hygiene with EHEDG and 3-A certification or compliance with current GMP regulations to minimize contamination risks Robust, reliable stainless steel design ensures continuous operation and more uptime Simple maintenance thanks to front-loading design, easy seal conversion, and quick wear parts replacement High-purity UltraPure pumps backed by Alfa Laval Q-doc documentation package for full material traceability. Maximize overall pump efficiency of your hygienic processes with Alfa Laval centrifugal pumps. From basic transport duties to high-purity product transfer, these sanitary centrifugal pumps reduce total cost of ownership across the dairy, food, beverage, home-personal care, and biotech and pharmaceutical industries. LKH pump Demanding duties Evaporation duties High-pressure duties Self-priming duties CIP return duties Duties with entrained air SolidC pump Basic duties Intermittent product pumping CIP transfer duties LKH and SolidC UltraPure pumps High-purity duties How does a Centrifugal pump work? The centrifugal pump impeller, which may be a semi open impeller or another design depending on the application, is mounted on a shaft driven by an electric motor. As it rotates, this essential part of industrial centrifugal pumps transfers energy to the liquid, thereby increasing pressure. The increase in pressure is due to the centrifugal force generated, a principle common to various types of centrifugal pumps, which subsequently increases the kinetic energy of the liquid.

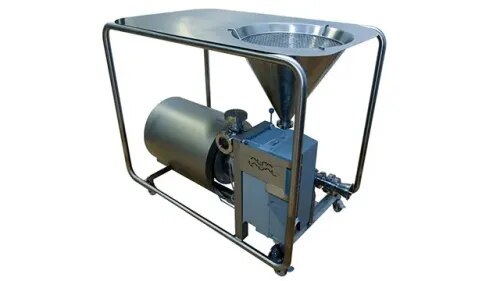

Raise process efficiency, product quality and yield while reducing total cost of ownership with Alfa Laval powder mixers. A combination of pump and powder-dissolving technologies makes possible quick, efficient powder dispersion, wet and dry ingredient blending, and the transfer of the homogeneous powder-liquid mixture for onward processing. A single electric motor drive enables powder mixers to cut energy costs by up to 75% compared to other powder mixers. Powder mixers Increase mixing efficiency and energy efficiency while reducing total cost of ownership Boost yield thanks to quick and efficient blending of wet and dry ingredients into a homogeneous mixture Increase process and product flexibility, easily handling various formulations with different viscosities, densities, and volumes Cut process time, emissions and installation, energy, raw material, and maintenance costs Improve process flexibility by leveraging the mixing and cleaning capabilities in a single unit Fast return on investment and low total cost of ownership due to less waste and a more sustainable use of resources Alfa Laval powder mixers increase mixing efficiency and productivity while reducing total cost of ownership. A single electric motor drive enables the high-shear mixers to blend a wide variety of product formulations. The mixers draw powder into the unit while simultaneously pumping the resulting powder-liquid mixture at pressures of more than 4 bar. When used with a rotary jet mixer, the powder mixers may also be used as part of an efficient cleaning-in-place (CIP) system. Powder mixers are available as stationary units and mobile units. How does powder mixers work? A two-stage inline powder mixer comprises a two-stage pump with a rotor-stator, a funnel, and an injector. This high-shear powder mixer machine is typically integrated into a circulation loop and connected to a batch tank. In the first stage, the powder mixer circulates the liquid ingredients through the tank. Powdered ingredients are then added through a funnel. A valve under the funnel opens, and the injector positioned under the valve creates vacuum conditions in the funnel outlet, drawing the powder into the rotor-stator and pre-blending the powder and the liquid. The rotor-stator (single rings) creates the main shear, efficiently blending powder and liquid into a homogeneous mixture using advanced powder blendi techniques. In the second stage, the pump’s impeller creates the final shear and transfers the mixture into the tank under high pressure. A portion of the powder-liquid mixture is recirculated through the injector back to the first phase. The liquid flow in the injector creates vacuum conditions in the funnel outlet, enabling dynamic suction of the powder into the liquid. After mixing has been completed, the powder mixer may be used as a discharge pump or a Cleaning-in-Place (CIP) recirculation pump to clean the tank when used with a rotary jet mixer. For specialized applications, an industrial powder mixing machine such as the Alfa Laval powder mixer or a powder machine mixer can further optimize the process.

Our agitators have a flexible, modular design and enable you to tailor a mixing solution to your exact requirements. The agitator range includes top-mounted units, with or without bottom support, as well as bottom or side-mounted units. Modularity lend itself to ease of installation and maintenance, and superior design ensures quality, performance and economy. The purpose-built agitators have smooth surfaces that promote optimal flow.

Our instrumentation accessories can be used in hygienic production in the food, beverage, dairy, personal care and pharmaceutical industries.

Ensure the highest possible process safety using Alfa Laval UltraPure pharmaceutical tubes. Compliant with ASME BPE standard, these precision-engineered pharmaceutical aluminum tubes connect critical process equipment in high-purity applications. UltraPure tubes comply with global hygienic standards for use in piping systems across the biotech, pharmaceutical, and personal care industries. Pharmaceutical tubes Quality process piping whenever high-purity applications call for extreme cleanliness More uptime due to high-quality surface finishes that promote maximum cleanability Minimal cleaning time due to the high-purity welding, material, dimensions, and tolerances High process and product integrity due to high quality throughout the manufacturing process and BPE certification Safe, secure operations due to full traceability from certified raw material compliance to finished product Global presence with Alfa Laval offices, partners, and distribution centres worldwide Meet the highest demands for connecting high-purity equipment with Alfa Laval UltraPure pharmaceutical tubes. Part of a broad portfolio of high-purity solutions, UltraPure tubes meet the stringent requirements of the ASME BPE standard, required to connect the piping systems of bioprocessing equipment. Easy to order, these BPE tubes are backed by solid customer support and a global organization you can rely on. How does UltraPure pharmaceutical tubes work? Tubes All UltraPure pharmaceutical tubes are manufactured in compliance with ASME BPE standards and according to stringent Alfa Laval specifications in our own factories. This ensures the highest levels of hygiene in ultra-clean processes, making them ideal for pharmaceutical and biotech applications. Our pharmaceutical stainless steel tubes and bpe pipe solutions are designed for dimensional accuracy and structural integrity. They are easy to install and offer excellent corrosion resistance, ensuring a long service lifetime for pharmaceutical manufacturing environments. Material and mill test certifications Every Alfa Laval UltraPure pharmaceutical tube is supplied with a certificate verifying compliance with 3.1 Material Certification and Mill Test Report (MTR) requirements. These certifications confirm the chemical and physical properties of the materials used in our ASME BPE tubing, pharmaceutical stainless steel tubes, and bpe pipe products, ensuring quality and reliability for pharmaceutical applications.

Rely on Alfa Laval hygienic tubes for contaminant-free connections throughout your hygienic processing systems. For safety, reliability, and efficiency, choose the wall thickness, interior surface finish and tolerance that meet your precise requirements from a broad range of stainless steel tubes for standard duties. All hygienic tubes undergo stringent quality control procedures and meet global hygienic standards to safeguard process integrity and process quality. Hygienic Tubes Hygienic tubing at its best – the safety, hygiene, quality and availability you need Faster cleaning times thanks to high-quality, interior surface finishes More uptime thanks to high weld quality and smooth surface finishes Enhanced safety due material tested according the EN 10204 3.1 standard Exceptional performance with compliance to ISO 9001 quality management standards Easy access to and fast delivery from strategically located global distribution centres Let Alfa Laval hygienic tubes raise productivity and control costs by ensuring hygienic connections throughout your processing lines. To optimize process flow rates, choose from a broad portfolio of tubes and fittings with smooth, crevice-free design, superior corrosion-resistance, and secure, self-aligning joints. Easy to order, these come in the surface finishes, uniform wall thicknesses, tight tolerances, and global standards that your processes require. Available worldwide, they are backed by Alfa Laval’s global presence and local se

Maximize production uptime and safety, regardless of process conditions, with a broad portfolio of automated control valve solutions from Alfa Laval. Alfa Laval sensing and control units accurately monitor and regulate the flow in fluid handling systems. Easy to set up and operate, these sensing and control valve indication units provide reliable position feedback so that plant managers always know the valve status. They boost efficiency, reduce costs, and promote precision fluid handling. Alfa Laval ThinkTop sensing and control Maximize product safety and uptime with valve automation Enhance product safety based on decades of fluid handling experience and valve automation expertise Cut installation time up to 90% and reduce error with fast and intuitive auto setup due to easy mounting, universal adapter and single sensor target Get clear visibility of valve status from any direction thanks to 360° LED indication Easily adapt sensing and control to fit all compatible valves through smart mounting that speeds installation and reduces errors Save space with a compact design that easily fits into tight spaces Raise productivity in your fluid handling process lines with Alfa Laval sensing and control units for exceptional surveillance and management of fluid handling processes. Boost production uptime, durability, and safety by choosing an automation solution that best suits your requirements – from cost-effective indication units and standard digital valve control heads to intuitive, fully automated control valve units for smart digital manufacturing. Upgrading your valve automation systems is easy since sensing and control units are backwards compatible. All units provide reliable status feedback through fit-for-purpose interfaces, including IO-Link for Industry 4.0. Perfect for use across the dairy, food, beverage, home-personal care, biotech, and pharmaceutical industries. How does automated control valve units work? Alfa Laval valve automation solutions include advanced ThinkTop sensing valve and control units, precision valve and automation Valve Control Unit, cost-effective Valve Control Top, and valve indication units to meet different process requirements. Compatible with all Alfa Laval valves, the Alfa Laval ThinkTop series uses microchip sensors for precision measurement of the valve stem movement and valve end positions, and is compatible with a valve positioner for enhanced control. These solutions support sensing valve technology and precision valve automation. Digital PNP feedback signals, AS-Interface, or IO-Link communication protocol connect sensors and actuators, regardless of fieldbus, to your automation systems. Collecting, storing, and analyzing meaningful real-time data brings the power of Industry 4.0 to your hygienic processing lines. Mounted directly on the valve top or the valve yoke, Alfa Laval valve indication units feature up to two feedback signals that show the valve position (open or closed). Operating principles vary, depending on the sensor type, including non-contact proximity sensors, two- or three-wire proximity sensors, and sensors with M12 plug or encapsulated cable.
