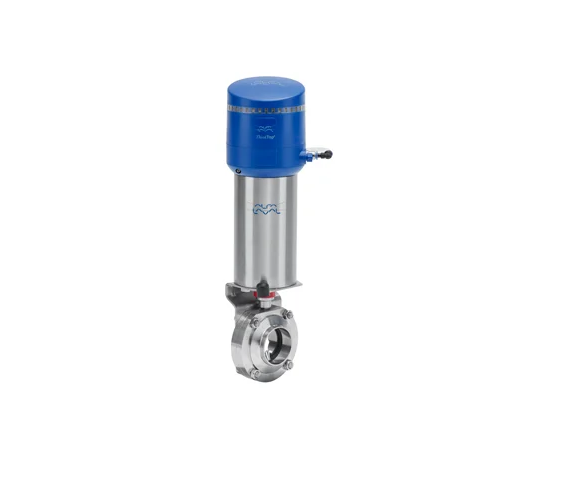

LKB Butterfly Valve

Full range, full spectrum

The Alfa Laval LKB butterfly valve range consists of modular units designed to meet the full spectrum of requirements at working pressures from full vacuum to 10 bar. All valves are FDA-compliant, designed for use in a wide range of stainless steel pipe systems, and can be built to comply with virtually any installation standard.

Reliable performance

LKB butterfly valves come with several features that ensure reliability performance. A highly polished stainless steel disc with surface smoothness down to Ra<0.8 µm and bearing bushes clipped onto the disc stems prevent metal-to-metal abrasion and ensure smoother disc movement.

The stem diameter provides particularly low flow resistance, ensuring gentle product treatment for low and medium-viscosity products. In addition, Alfa Laval seal technology provides greater thermal stability, better chemical resistance and improved tensile strength.

Manual or automated control

Alfa Laval LKB butterfly valves can be complemented with lockable handle for manual operation of with an actuator and in combination with either a valve indication unit or Alfa Laval ThinkTop valve sensing and control units.

For manual operation: Alfa Laval provides a complete range of handles, including a multi-position lockable handle.

For automated operation: A selection of different actuators is available; special double-spring design enables application of maximum torque to the valve disc at breakaway and seal positions. This makes it easy to integrate these valve units into larger systems operated from a central point, and/or to operate them automatically for maximum efficiency.
