Product Description

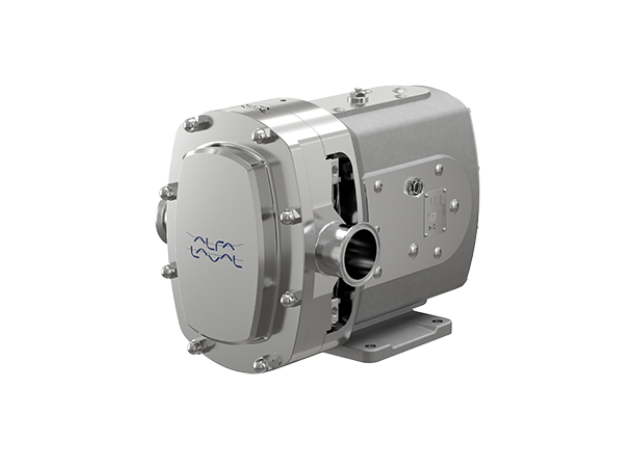

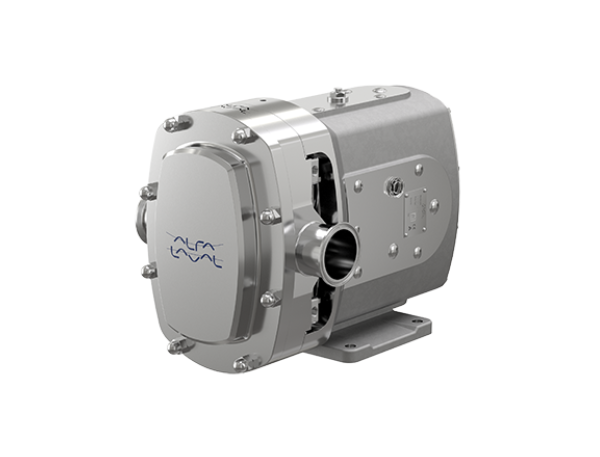

The Alfa Laval DuraCirc® Aseptic is a revolutionary circumferential piston pump for aseptic applications. It delivers the perfect balance of durability, reliability, high efficiency and superior hygienic performance. Combined with a broad range of flow rates and pressures along with capabilities for simple service, DuraCirc® Aseptic keeps your processes up and running.
No more compromises: Best-in-class offering for supreme performance, superior hygiene and simpler service – all in the same pump
- Optimized for high volumetric efficiency, ensuring cost-effective pump selection and high product quality
- Hygienic design compliant with global standards, including EHEDG and 3-A
- Reliable, long-term operation thanks to durable, robust, heavy-duty, all-stainless steel construction
- Easy to service and maintain with fully interchangeable spare parts
- Truly aseptic with the ability to provide a steam barrier on all interfaces between the product media and the outside atmosphere
Pump performance, hygienic design and ease of service are essential to hygienic processes. The Alfa Laval DuraCirc® Aseptic circumferential piston pump (CPP) delivers it all – high volumetric efficiency, EHEDG and 3-A conformance, and quick and easy service. DuraCirc® Aseptic is engineered for aseptic process applications in the dairy, food and beverage industries, primarily for packaging where extended shelf life is required.
For a cost-effective pump selection, the pumps come in five models, capable of flow rates up to 103 m3/h (453 gpm) and pressures up to 25 bar (363 psi).
Simplify service in terms of complexity and time with user-friendly features including a truly front-loading, self-setting single mechanical seal, use of a single long-life oil lubricant, and external shimming.
Supreme Performance
Designed with close pump head clearances, the DuraCirc® Aseptic pump maximizes volumetric efficiency and process yield. Five models offer a wide performance envelope with flow rate capabilities up to 103 m3/hr (453 gpm) and operating pressures up to 25 bar (363 psi). This makes optimal pump sizing and selection easy, thereby reducing capital costs and increasing process flexibility.
Based on a robust, reliable design, DuraCirc® Aseptic features include:
- Advanced port and pump-head geometry, providing a very low NPSHr characteristic. This significantly reduces cavitation risk and maintains pump and media integrity whilst increasing process flexibility in challenging applications
- Long-life, heavy-duty bearings, supporting rigid shafts located in a solid stainless steel gearcase, which reduce shaft movement and allow close pump-head clearances. This minimizes pump-head contact and ensures process uptime
- A modular seal design, which makes seal conversion easy without requiring re-machining or additional flush housings, should the process application change
- An optional retrofit port, the DuraCirc® Uni-Fit, enabling easy, direct replacement of existing circumferential piston pumps from both Alfa Laval and other brands, without requiring pipework modification in existing process systems
Superior Hygiene
The all-stainless-steel DuraCirc® Aseptic is certified to meet global standards for hygienic design, including EHEDG and 3-A. In contrast to many other circumferential piston pump brands, the DuraCirc® Aseptic provides both excellent cleanability and high volumetric efficiency.
Features that reduce the risk of contamination include:
- Profiled, product-wetted elastomers that are FDA-compliant and have a defined compression, thereby eliminating crevices and dead zones
- A robust gearcase with optimally positioned heavy-duty bearings that support large diameter shafts, which minimize pump-head contact, thereby reducing the risk of media contamination
- An all-stainless steel construction suitable for hygienic washdown, ensuring a cleaner environment
- Long-lasting, FDA-compliant gearbox lubricant
- Ability to introduce a steam barrier on all media/atmosphere interfaces, including front cover, ports and mechanical seals
Simpler Service
Increase process uptime and make service faster and easier with innovative DuraCirc® Aseptic design features. Perform standard maintenance procedures quickly and simply, without requiring gearbox disassembly, component re-work, or complex pump re-build procedures.
Features include:
- A truly front-loading, self-setting, single mechanical seal for fast, in-situ seal replacement, without having to remove the pump from the process line
- Quick, easy replacement of rotors or rotor case in the unlikely event replacement is required
- Easy-to-access, external shimming outside the rotorcase instead of inside the gearbox
- Fully interchangeable spare parts
- Long-life bearings, offering tens of thousands of hours of operation
- A single, long-life, FDA-approved gearbox lubricant with an extended 3,000-hour change interval
